Inicio /Productos/Máquina de unión por ultrasonidos/15k 20k Portable Ultrasonic Plastic Welding Machine Spot Welding Machine Plastic Welder

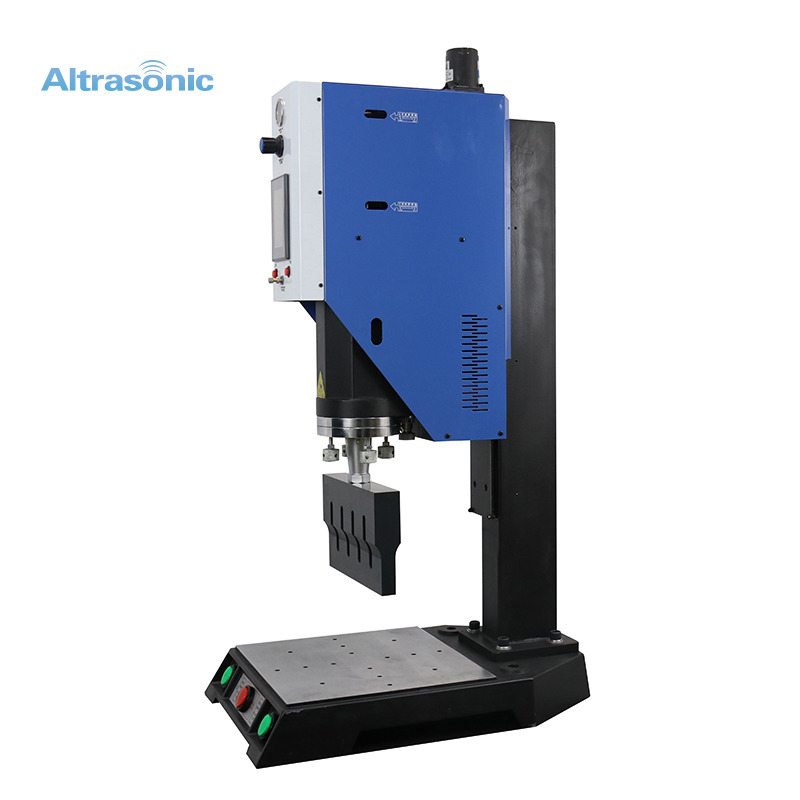

15k 20k Portable Ultrasonic Plastic Welding Machine Spot Welding Machine Plastic Welder

1.0 Units
MOQ
15k 20k Portable Ultrasonic Plastic Welding Machine Spot Welding Machine Plastic Welder
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Voltage: 110V/220V/380V/Customize
Frequency: 15kHz
Welding Area: Depend
Dimensions: 476mm(L)*736mm(W)*1524mm(H)
Usage: Plastic Welding
Warranty: 1 Year
After-sales Service Provided: Online support, Video technical support
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Other
Weight (KG): 68 KG
Power (kW): 3
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Product name: Ultrasonic Plastic Welding Machine
Application: Plastic Welding
Certificate: CE
Range Of Welding Time: 0.05-10/sec
Maximum Pressure: 1.96KN
Environment Temperature: 5-50℃
Maximum Stroke: 100MM
After Warranty Service: Video technical support
Información básica
Certificación: CE
Pago y Envío Términos
Packaging Details: Standard Export Carton
Supply Ability: 2000 Set/Sets per Month
Descripción de producto
Because of national lockdown in 2020, we stay at home or office more time compare previous, Ultrasonic products more popular, pls follow us first and then click “send inquiry” or “contact supplier”, we will recommend our hot sale and suitable item to you.
If purchase as gift or personal use or interesting, also welcome, We wish develop with customer instead of look down upon, we will check best shipping with alibaba.com after received your inquiry.
Specification
Item No
HS-W15B
Frequency
15Khz
Power
3300W
Voltage
200-240V,Alternating current
50-60hz, Single phase
Electric current
20A
Range of welding time
0.05-10/sec
Environment Temperature
5-50℃
Air supply requirements
Clean dry compressed air, maximum pressure 7kg
Maximum pressure
2.89KN
Maximum stroke
100MM
Beats
50/Min
Triggered Dynamic range
135-990N
Weight
68Kgs
Dimension
476mm(L)*736mm(W)*1524mm(H)
Product Description
Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.
Recommend Products
Company Profile
FAQ
Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through
communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our
main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just
send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
