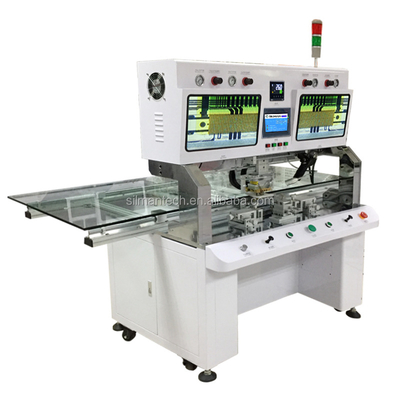

Acf Cof Bonding Wire LCD TV Panel Screen Repair Acf Tag Cof Bonding Machine For TV Repair Shop Service Center

1 Set
MOQ
$3,399.00(1 - 2 Sets) $3,299.00(>=3 Sets)
Precio
Acf Cof Bonding Wire LCD TV Panel Screen Repair Acf Tag Cof Bonding Machine For TV Repair Shop Service Center
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC
Warranty: 1 Year, one year
Applicable Industries: Machinery Repair Shops, TV Panel Repair Shop
Showroom Location: Turkey, Viet Nam, Philippines, Pakistan, Thailand, Kenya, Argentina, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia
Product name: bonding machine
Keyword: led lcd tv panel screen repair
Application: acf cof bonding
Function: flex cable ic cof bonding repair
Suitable for use: 100 inches
Size: 1240*840*1680mm
weight: 350KG
Heating Method: Hot press Pulse heating
Certificación: CE Certificated
After-sales Service Provided: Free spare parts, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Turkey, United States, Viet Nam, Philippines, Indonesia, Pakistan, Thailand, Malaysia, Kenya, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Información básica
Certificación: CE Certificated
Pago y Envío Términos
Packaging Details: Wooden box Packing for export
Supply Ability: 399 Set/Sets per Month cof bonding machine
Descripción de producto
Product Description

led lcd tv panel screen repair acf tab cof bonding machine for TV repair shop service center

ACF Pulse heat Bonding Machine can repair defective panels of LED/LCD/TFT/Laptop/other Panels with bonding technology by bonding
of New TAB/COG/ FOG/COF/IC/pcb and cost of lcd screen repair goes down very low compared to Replacing  a new Panel. The machine does perfect
Bonding and results are amazing.

* ACF Pulse Heat hot press Bonding Machine For 14" to 85" LED/LCD/TFT Panel Repairs/Bond
* Machine has two Digital Microscopes
* Machine has Vacuum Generator To Hold the Panel During Bonding
* Machine has a Digital Pressure Gauge
* The X Y movement and Track Matching and bonding is easy with single button press (Glass Bonding & PCB Bonding respectively)
* Image of bonding machine working process.
* Image of our medium bonding machine
* Images of accessories included.

Specification
Product Name
Medium Bonding Machine
Model #
ST-100SW
Applicable LCD size
Max 100 inches
Applicable LCD panel thickness
0.3-1.1mm
Heating mode
Pulse Heat
Working precision
±0.015mm
Machine size
1240*840*1680mm
Weight
430KG
Input Power
3500W
Rated Power(W)
AC 220V
Work pressure
0.1~0.7Mpa Dry air source
Operation mode
7 inch touch screen control
Alignment system
2 High definition C/LCCD camera
Temperature error range
±0.5°C
Programming control device
Panasonic PLC
TAB fixture
micrometer X, Y, Z Axis adjust
Platform moving
Manual Operation
Hot press head size
50*1.4*10mm
Bonding Head Material
Titanium Alloy Grade 1
TAB fixture
micrometer X, Y, Z Axis adjustable
Platform motion
Manual Operation
Details Images

1) 2 pcs High definition Cameras

2) T-type titanium alloy press head

3) Tab adjustable fixture

4)Vacuum adsorption glass platform

6) LED light

7) Japan SMC High Precision Cylinder

8) Dual Temperature Module

9) Double screen display

Packaging & Transportation

Accessories will be packed with machine in one wooden box whie the glass working platform will be packed separately.


Product Name
Medium Bonding Machine
Model #
ST-100SW
Body size
1800X1200x1520mm(L*W*H)
Net weight of equipment
350KG
Number of packages
2
Equipment packaging
Wooden boxes, non-logs
(material is glued board, no fumigation is required for export)
Package size and gross weight
1240*840*1680mm（L*W*H）337KG
1920*240*960mm（L*W*H） 110KG
